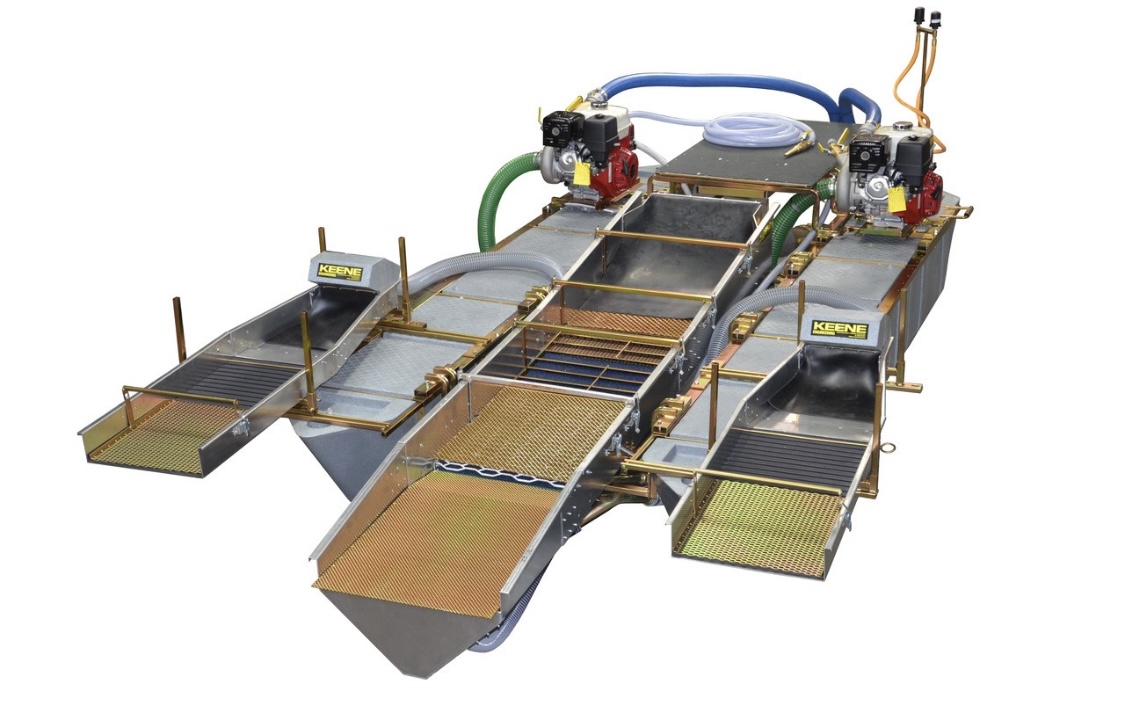

6″ Super Max Sump Dredge with Diamond Sluice and 18″ Floats

The 6″ Super Max Sump Dredge is engineered for serious prospectors. Available only through our store, this professional-grade system features a dual diesel engine platform, fine gold sump capture system, and a diamond extension sluice built for ultra-efficient gold and gemstone recovery.

Built for Deep Water Recovery and Fine Gold Retention

This powerhouse dredge is equipped with two 10 HP Yanmar diesel engines. These engines drive high-volume pumps that deliver powerful suction. Even in deep or fast-moving water, this dredge performs with precision and reliability. As a result, more material is processed faster, with less downtime between cleanups.

Exclusive Diamond Extension Sluice + Super Max Sump

The integrated sump system captures ultra-fine gold—particles as small as 500 mesh. But that’s not all. The rear-mounted diamond sluice extension increases the recovery area, enhancing retention of micro gold and heavy gemstone concentrates. Together, they create a continuous, high-yield sluice path built for maximum efficiency.

Compressor System with Dual Diver Capability

Work comfortably at depths up to 35 feet. The onboard 263 compressor delivers air to two divers, allowing extended underwater operation. If your prospecting plan involves submerged recovery, this system gives you the breathing room to get it done right.

Stability and Strength in the Field

This unit floats on rugged 18″ Marlex pontoons. These provide a stable platform for dredging even in rough current conditions. The modular frame is constructed from tubular steel and breaks down easily for transport. Whether you’re loading by ATV or hiking into remote terrain, this dredge moves with you.

Technical Specifications

• Suction Hose: 6″ diameter
• Engines: Dual 10 HP Yanmar Diesel
• Pumps: PHP500
• Compressor: 263 – supports 2 divers
• Sluice Box: 8′ x 24″ main + diamond extension
• Sump System: Integrated slurry recycling
• Floatation: 18″ Marlex pontoons
• Operating Depth: Up to 35 feet
• Fuel Efficiency: Approx. 0.5 gallons/hour
• Price: $23,600.00
